Thermally-decoupled drip tray prevents condensation at outside of the tray.
Improved Pipe and Fin Structure for High Thermal Efficiency
Inner Grooved Copper pipes provides enhanced heat transfer coefficient in two-phase flow of refrigerant.
Higher heat transfer performance on the air side is provided by the use of specially corrugated fins.

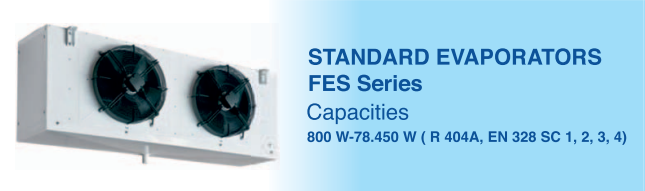

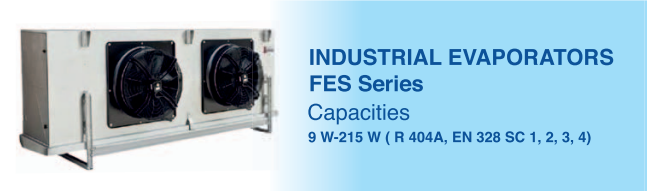

FES – AIR COOLERS
Features and applications
FES model ceiling type coolers are specially designed for small, medium and large industrial cold room, frozen storage blast freezing and rapid cooling room application.
Fritem FES series are ceiling mounted, single side discharge evaporators draws air across the coil
Unit coolers with three phase motors are available for an operation with two rotation speed and high speed provides a rapid pre-cooling and then slower air circulation which avoids humidity loss.
Friterm FES series consists of 606 models with wide variety of accessories incorporates capacity range from 0.8 kW to 204 kW
Unit are suitable to work refrigerants like R404A, R507, R134A.
Coil Block
Inline alignment that reduce defrost duration and defrost energy consumption.
4-7-10-12 mm fin pitches.
Interally grooved copper tubes specially for air coolers, aluminum fin
Cooper Inlet and outlet connections.
Standart refrigerant connections are positioned on the right hand side of the direction of the air flow.
Refrigerant distributor.
Optimized circuitry design.
Test Pressure: 34 bar(PED 2014/68/EU)
Maximum operation pressure:22 bar
CASING
Casing material is AIMg3 or galvanised steel depending on model a dimension.
All product are electroststically powder coated with RAL 9016 providing high corrosion resistance, smooth surface and decorative appearance.
Hinged side covers and drip tray for easy access.
Special lifting eyes and supporting legs make transportation and installation easier(small air cooler with 0300-350 mm are delivered without supporting legs)
Drip Tray
Dismountable drip tray for air coolers with 0630-800 mm fan.
Hinged drip tray for air coolers with 0300-350-400-450-500-mm fan.
Thermally decoupled tray witch prevents formation of condensation at the outside surface.
FANS
High efficient axial Ziehl Abegg, EBM or equivalent fans are employyed in unit collers with diameters of 300-350-450-500-630-800 mm.
Moters protection classes are IP44(for 0400-350-300 mm) and IP54(for 0800-630-500-450 mm); fans insulation classess are B and F.
Minimum working temperatures are-25 °C for monophase fans and -40 °C for 3phase fans.
Special fans should be used at the operating canditions below-40 °C.
Fans are arranged for standart drow through air configuration.
Power data for 300/350/400/450 mm fans is 230V 1~50/60 Hz; for 500/630/800 mm fans is 400V 3~50 Hz,
Three phase AC fans can work at two different speeds.
Thermistor connections must be done for motor protection in all fans where available.
Friterms reservers the right to use fans of different manufacturesrs. Depending on the brand and type, the fan data may slightly vary.
EVAPORATORS
NES-AMMONIA COOLERS
Features and applications
Ammonia coolers are specially designed for medium and large industrial cold room, frozen storage, blast freezing and fast cooling room application.
Friterm NES ceiling mounted single discharge evaporators draws air across coils.
Triphase fans provides coolers to be suitable for not only fast cooling but also low air circulation application.
Friterm NES series consist of 432 models with wide variety of accessories incorporates capacity range between 3 kW- 250 kW
Coil Block
50 x 50 mm in-line alignment.
15 mm AISI 304 stainless steel tubes.
4-7-10-12 mm of standard fin pitches. Other fin pitches are optional.
Aluminium fins.
Inlet and outlet connectors are AISI 304stainless steel.
Standard refrigerant connections are positioned on the right hand side of the direction of the air flow
Optimized circuitry design.
Test Pressure; 34 bar
CASING
Casing material is AIMg3 or galvanised steel depending on model and dimensions.
All product are electroststically powder coated with RAL 9016 providing high corrosion resistance, smooth surface and decorative appearance.
Standard hinged side coverings provide easy access to connections
Drip Tray
Drip tray can be producted as hinged or dismountable depending or model and dimensions.
FANS
Highly efficient axial 2iehl Abegg EBM or equivelant fans are used in 400-450-500-630-800 mm diameters.
Motor protection Ip44 and Ip54; insulation class B and F
Minimum working temperatures are-25 C for monophase fans and -4’C for triphase fans.
Special fans should be used under operating conditions below-40C
Fans are arranged for standard draw through air configuration.
400/450 mm fans 230V 1-50 Hz; 500/630/800 mm fans 400V 3-50 Ho
Triphase fans can work at two different speeds. Furthermore. EC fans providing speed control are optional.
Variable far speed regulation can be achieved using triphase fans with frequency inverter and sine filter.
working at low ambient temperature and high air resistance; thermistors must be used for motor protection.
Streamers providing extra air throw distance are optional.
Friterm reserves the right to use fans of different manufacturers. Depending on the type, the fan data may slightly vary.
SOUND DATA
Indicated sound pressure levels comply with EN 13487.
Sound levels are obtained from sound power levels (Lao) of the dans.
Consult an expert for critical sound requirements.
DEFORT
Hot Gas Defrost
The standard coolers are suitable for hot gas defrost system.
The compact evaporator coil with the small tube pitch and high heat transfer coefficient, ensures a uniform and effective defrostting and a short defrostting time.
Hot gas defrost with tubes positioned in drip tray is optional. Electrical Defrost
Electrical Defrost
Electrical Defrost is a standard application in coilblock and optional in dry tray.
